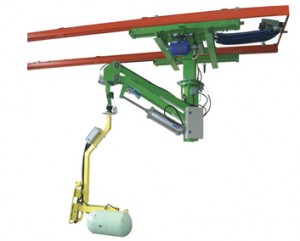

PN Series: The PN series pneumatic manipulators are completely pneumatic balancers for capacity up to 250 kg including lifting tool. Different models are available: PN ERGO, PN FLEX, PN COMPATTO and PN ZIP, and different supports such as column, ceiling, overhead rails mounted.
ERGONOMIC: The specially designed position of the cylinder grants consistent load balancing along the whole vertical stroke.
RELIABLE: It’s completely pneumatic manipulators logic guarantees a high level of long-term reliability and very low maintenance costs.
SAFE: Equipped with safety devices that retain the grip on the load, even in case of power interruption. Special brakes keep the arm and gripping tool still when not used.
VERSATILE: It can be equipped with countless types of lifting tools, mechanic or vacuum, standard or custom made.
Contact Us for further information
Product Specifications
| PN ERGO MODELS Column mounted | PN 80 | PN 160 | PN 250 | |
|---|---|---|---|---|
| Capacity (including lifting tool) | Kg | 80 | 160 | 250 |
| Arm length (R1) | mm | 2700 | 2700 | 2600 |
| Vertical stroke | mm | 1750 | 1720 | 1450 |
| Offset handling: max distance from the lifting tool Z axis | mm | 300 | 300 | 500 |
| Uncovered area (R2) | mm | 907 | 935 | 900 |
| otation around column Raxis | degrees | Continuous | Continuous | Continuous |
| Rotation around tool axis | degrees | Standard: 550 optional: continuos | Standard: 550 optional: continuos | Standard: 550 optional: continuos |
| Air pressure min. | Bar | 6,5 | 6,5 | 6,5 |
