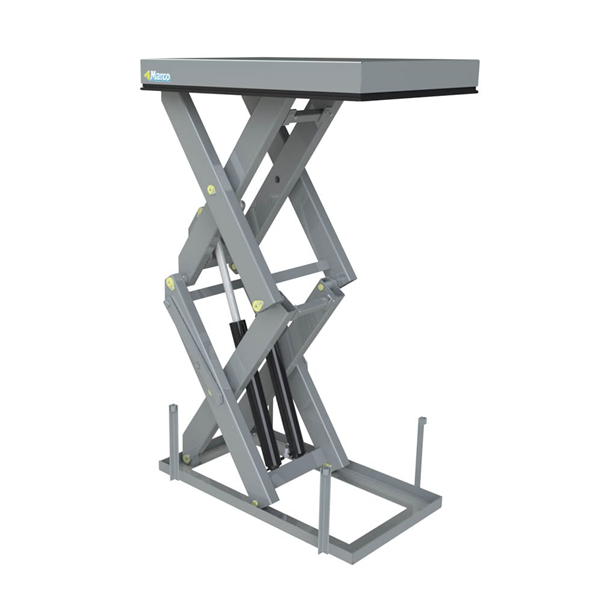

Our high lift scissor table have multiple vertically mounted scissors that provide a higher lift than single scissor tables can achieve. They are used as:
- Work Platform
- Good lifts
- Elevator
- Lifts for disabled people
- Pallet stackers
Our high lift scissor tables are the rational and economical solution to replace conventional elevators.
| ARTNO | MODEL | CAPACITY | LIFT STROKE | CLOSED HEIGHT | WIDTH | LENGTH |
|---|---|---|---|---|---|---|
| 860102 | M2 005320-D22H | 500 | 3200 | 400 | 1000 | 2250 |
| 860105 | M2 005180-D12H | 500 | 1800 | 350 | 1000 | 1350 |
| 860110 | M2 010180-D22H | 1000 | 1800 | 350 | 1000 | 1350 |
| 860111 | M2 015180-D2/2H | 1500 | 1800 | 400 | 1000 | 1350 |
| 860114 | M2 010200-D2/2H | 1000 | 2000 | 350 | 1000 | 1500 |
| 860115 | M2 010250-D22H | 1000 | 2500 | 350 | 1000 | 1800 |
| 860118 | M3 010320-D22H | 1000 | 3200 | 500 | 1000 | 2250 |
| 860120 | M3 020200-D2/2H | 2000 | 2000 | 500 | 1000 | 1500 |
| 860123 | M3 020320-D22H | 2000 | 3200 | 530 | 1000 | 2250 |
| 860124 | M3 020380-D2/3HB | 2000 | 3800 | 800 | 1800 | 2250 |
| 860125 | M3 020430-D2/2H | 2000 | 4300 | 650 | 1200 | 3000 |
| 860126 | M3,5 025320-D2/2H | 2500 | 3200 | 530 | 1200 | 2500 |
| 860130 | M4 030300-D22H | 3000 | 3000 | 700 | 1300 | 2500 |
| 860140 | M4 040300-D22H | 4000 | 3000 | 700 | 1500 | 2500 |
| 860141 | M5-040500-D2/3H | 4000 | 3000 | 700 | 1500 | 2500 |
| 860142 | M5-050400-D2/2H | 4000 | 3000 | 700 | 1500 | 2500 |
| 860143 | M6-080500-D2/2H | 8000 | 5000 | 1100 | 2500 | 4000 |
| 860145 | M4,5 020500-D23H | 2000 | 5000 | 1150 | 2000 | 3000 |
| 860180 | M2 010330-D23H | 1000 | 3300 | 530 | 1200 | 1650 |
| 860190 | M3 020380-D23H | 2000 | 3800 | 800 | 1200 | 2250 |
| 860660 | M0 004080-D1/2H | 400 | 800 | 200 | 600 | 800 |
