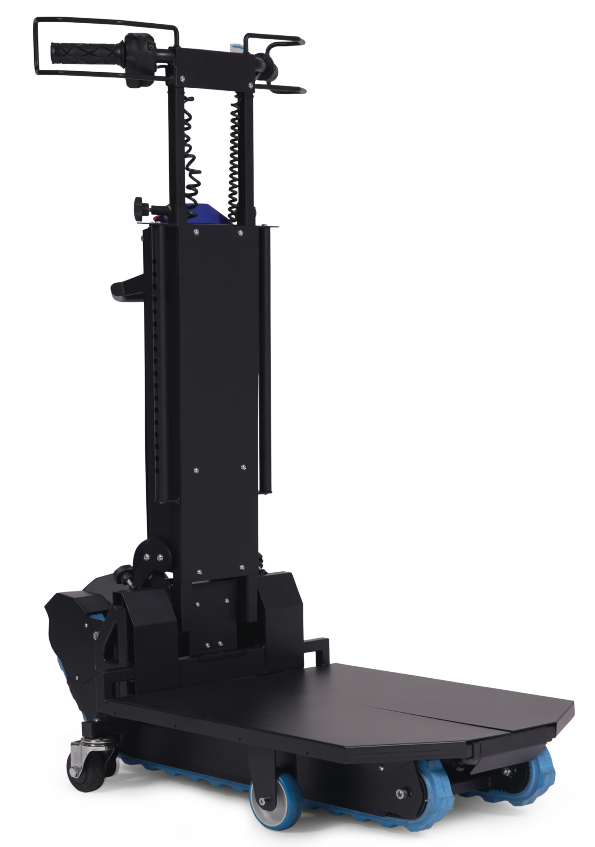

Introducing the Donkey Tracked, a powerful and efficient electric stair climber designed to
make the transportation of heavy loads effortless. With a maximum load capacity of 350 kg,
this compact and stable machine is ideal for both professionals and beginners in load
handling. The Donkey Tracked features a gradual track adjustment accelerator and a handle
indicator for easy manual inclination control, ensuring optimal safety and ease of use in
every situation.
Simplicity of use and safety
Stair climber designed for everyone: from expert users to beginners. Clear indicators,
guaranteed safety and a user-friendly design for impeccable transport.
Compact yet powerful
The “Donkey Tracked” stair climber: compact for vans and trucks, but with a powerful 350kg
capacity. Small only when it needs to be!
Unprecedented manoeuvrability
Donkey Tracked: rear swivel wheels for unique manoeuvrability, perfect in all settings.
Stability
Tracks and enabler for maximum stability on all surfaces, with indicators for operation and
Inclination
Key Features
- High Load Capacity: Capable of transporting loads up to 350 kg, making it perfect for a wide range of applications.
- User-Friendly Design: The Donkey Tracked is easy to operate, with features designed for both novice and experienced users.
- Gradual Track Adjustment: Allows smooth and controlled movement on stairs, enhancing safety and precision.

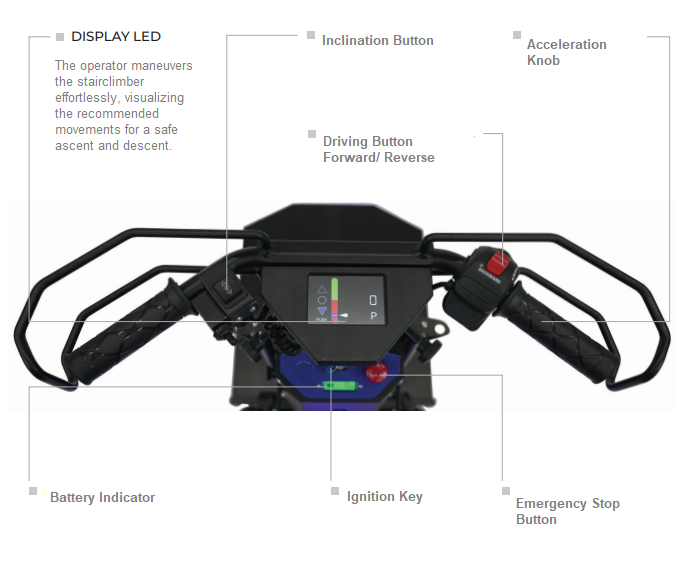

- Handle Indicator: Provides clear guidance for manual inclination control, ensuring stability during operation.
Specifications
- Total Unit Weight: 79 kg
- Machine Body Weight: 70 kg
- Platform Weight: 9 kg
- Minimum Dimensions: 1040 x 590 x 1080 mm
- Maximum Dimensions: 1040 x 720 x 1530 mm
- Maximum Step Height: 210 mm
- Maximum Transportable Weight: 350 kg
- Motor Power: 500 W
- Power Supply Battery: 2 x 12V – 12Ah
- Charger Absorbed Power: 80 W
- Charger Power Supply: 100 – 240 V
- Maximum Speed: 13 steps per minute
- Battery Autonomy (150 kg load): 425 steps uphill / 425 steps downhill
- Battery Autonomy (350 kg load): 260 steps uphill / 260 steps downhill
- Reserve Indicator Autonomy: 60 steps uphill / 30 steps downhill
- Minimum Staircase Width: 650 mm
- Minimum Maneuvering Space (L/U Landing): L: 970 x 970 mm / U: 970 x 1940 mm
- Maximum Staircase Inclination: 45°
- Operating Temperature Range: 0° to 40°C
- Storage Temperature (Dry Environment): -10° to 50°C
- Packaging Dimensions: 600 x 1150 x 400 mm

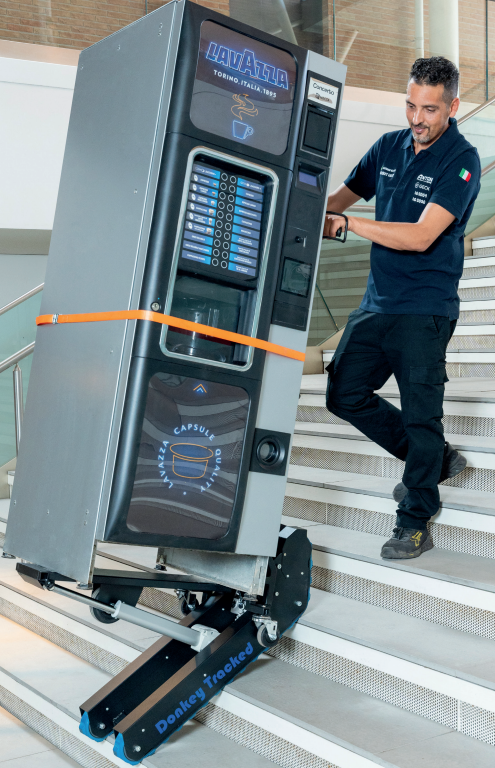

The Donkey Tracked is the ultimate solution for safe and efficient load transport on stairs.
Whether you’re in a residential, commercial, or industrial setting, this stair climber provides
the reliability and ease of use you need for heavy-duty tasks.
Red Laser Indicator
The laser indicates the optimal moment for activating the actuator that adjusts load angle,
which is essential for maintaining stair climber balance and perfect adherence while
ascending or descending stairs
Swivel Wheels
Four swivel wheels, essential for precise manoeuvres, provide unprecedented agility and total control, even in the smallest of spaces, facilitating all movements during load handling.
Closed Position
Donkey Tracked is easy to fold up, optimising space for easy storage and transport, ideal for rapid moves and practicality
Electric Castors
Operates until the end of staircases to stabilise the device on floors, for safe and reliable transport in all situations
Height-Adjustable Rudder
Ergonomic design and comfort for all operators, facilitating handling and ensuring optimal
control during transport on various surfaces
Tracks
For optimal adherence on various surfaces, ensuring exceptional stability and safety during
transport, maintaining high performance levels in all situations.
Adjustable Platforms
Adjustable to various heights, adjustable iron platforms have a load-bearing capacity of up to
350kg, providing versatility for goods of different sizes, as well as robustness and practicality
thanks to their extraction.
