Tractive Pusher TP500

Tractive Pusher TP500 – UP TO 12000KG

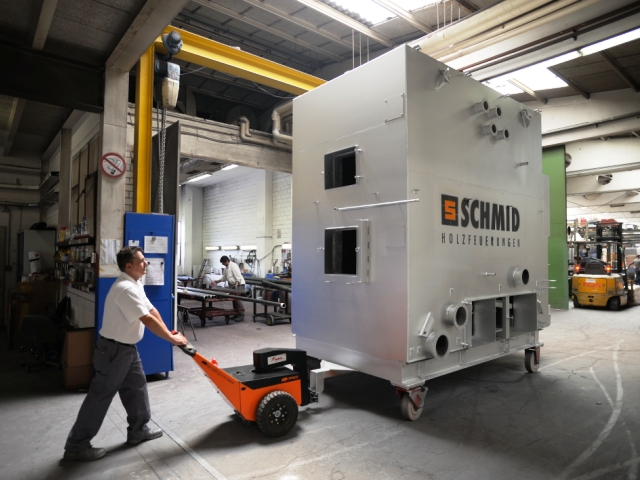

Our Tractive pusher TP500 is pedestrian operated and battery powered, designed to push, pull and manoeuvre wheeled loads. Used in rail applications this Tractive unit will move 50,000kg and move 12,000kg on trolleys. They ensure that operators can enjoy safe and efficient handling at all times. Simple to use, robust and ergonomically designed, we believe these electric tug units are the best on the Market!

Uses include, moving all wheeled and semi-wheeled loads, stillages, trolleys, baggage trolleys, roll cages, railed bogies, paper rolls and almost anything else on wheels you can think of!

Technical Specifications:

Draw Bar Pull5000N
Towing Capacity on Rails50000kg
Towing Capaity on Castors12000kg
Drive SystemAC Control
Motor Power1200W
Controller Current350A
Battery Capacity70A/h
Max Speed6kph
Turning Circle1.5m



Contact Us for more Information on Tractive pusher
