Vacuum Lifting Solutions for Glass Handling

In the Glass and Glazing Industry, precision, efficiency, and safety are paramount.

At One Stop Handling Ireland, we supply high-quality vacuum lifting solutions designed specifically for the glass and glazing industry.

Whether you’re lifting glass panes, windows, or glazed units, our systems enhance safety, precision, and efficiency—both in production environments and on-site installations.

From processing plants to building sites, we offer a range of static and mobile vacuum lifters to suit every stage of the glazing workflow.

Static Vacuum Lifters

Designed for workshops and production lines, these systems mount on cranes or jib arms, offering safe glass handling with tilt/rotation functions and loads up to 800+ kg.

Glass Handling Safety

Engineered for precision and operator safety, lifters use manual or electric pumps, strong suction pads, and smooth movement to handle fragile or oversized glass with ease.

Mobile Vacuum Lifters

Compact and versatile, mobile units enable safe glazing on-site, ideal for windows, façades, and narrow spaces, with tilting/rotating options for precise installation.

Express & Vector Models

The Express 200CW offers counterweight balance for tight areas, while the Vector 400 delivers off-road reach, dual vacuum safety, and high precision in glass installation.

Training & Support

All lifters are CE marked and supplied with full training, ongoing support, and optional extras like curved glass cups, lifting winches, and transport trailers.

Applications

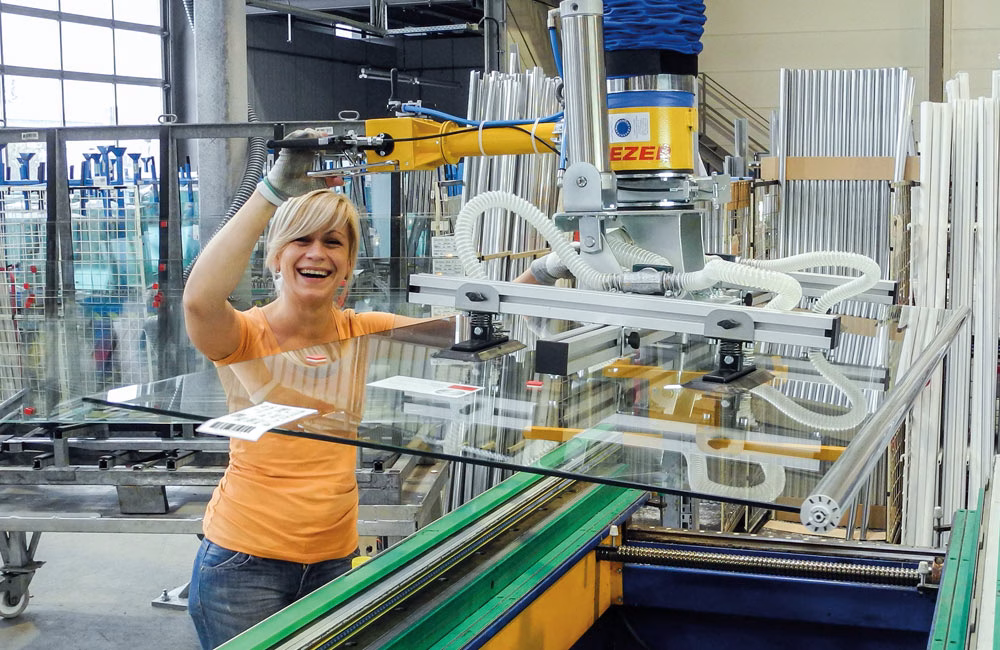

Static Vacuum Lifters (Workshop & Production Use)

This vacuum lifter can tilt glass from 0–90° and rotate from 0–360°, making it ideal for precision handling in workshop environments.

Our static vacuum lifters are engineered for workshop use and fixed production environments, where glass is handled repeatedly as part of manufacturing or assembly processes.

These systems are typically mounted to:

  • Overhead cranes
  • Gantry cranes
  • Jib arms

Ideal for:

  • Feeding glass sheets into CNC, cutting or polishing machines
  • Moving panels between workstations or stillages
  • Controlled handling of large or fragile units

Key features:

  • Manual or electric vacuum pumps
  • Suction pads for glass sheets of various sizes and weights
  • Tilt and rotation functionality (90° / 180° options)
  • Capacities from 100 kg to 800+ kg

We also offer custom setups to suit your space and workflow.

Mobile Vacuum Lifters (On-Site Glazing & Installation)

Our mobile vacuum lifters are designed for site work—where flexibility, compact size, and controlled handling are critical.

These systems are perfect for projects involving:

  • Window installation
  • Curtain wall and façade assembly
  • Internal glazing in restricted-access areas

Common applications:

  • Transporting glass through narrow access points
  • Installing glazed units flush against façades
  • Supporting vertical and overhead glass installation

Popular mobile solutions include:

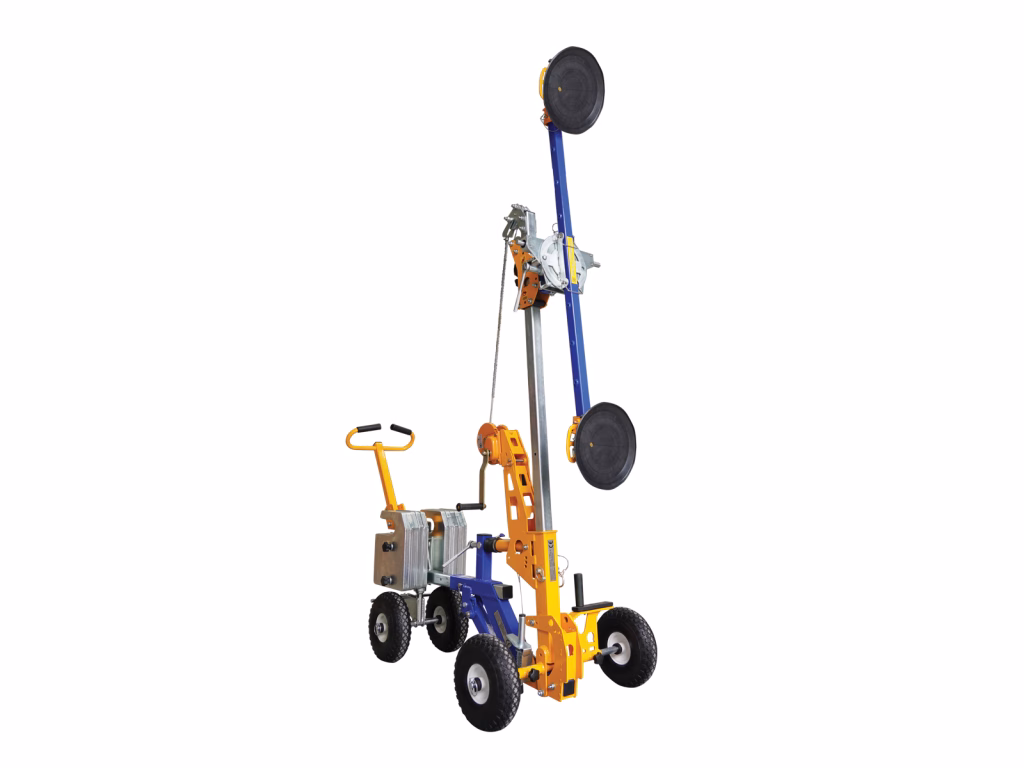

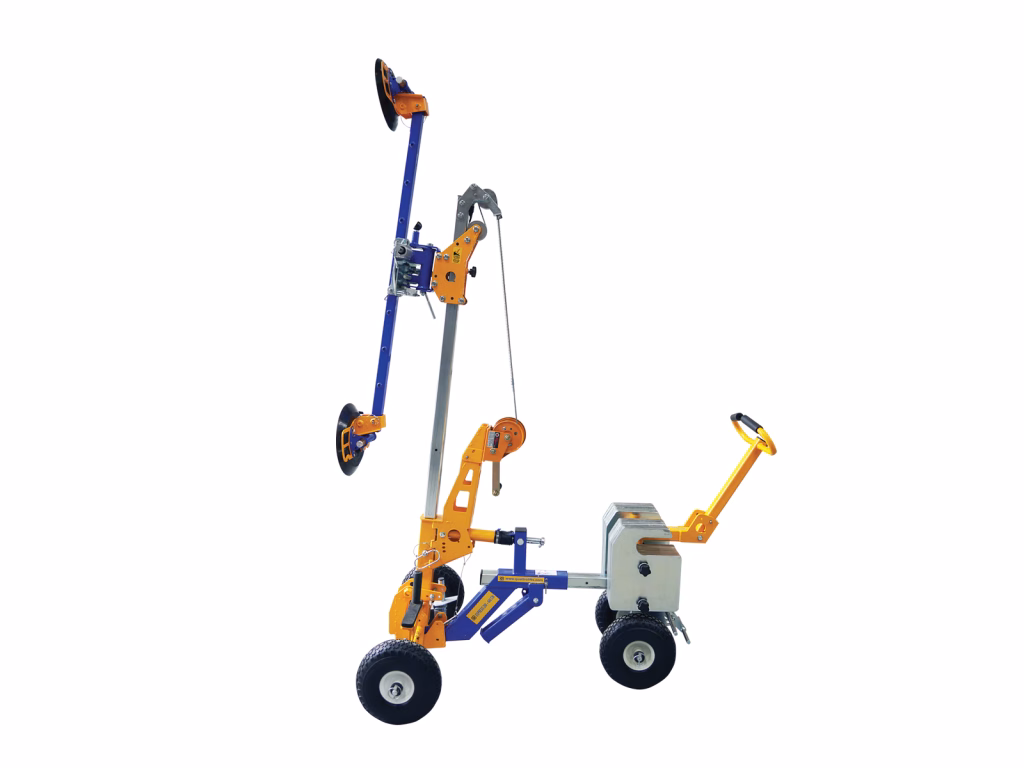

  • Express 200CW: A counterweight glass lifter with 200 kg capacity, ideal for floor-level and high-level installs in tight spaces.
  • Battery-powered vacuum lifters: Optional tilting or rotating functions for precise placement.
  • Modular lifting frames: Easy to dismantle and transport between sites.
  • The Vector 400: A heavy duty powered mobile glass lifter with high reach and great rotation

Mobile units are CE marked and available with full training and support.

Watch the Vector 400 Off-Road Mobile Vacuum Lifter in Action

This powerful, off-road glazing robot is ideal for external and internal installations, with high maneuverability, dual vacuum systems, and precision control for site work:

Main Features:

  • Lifting capacity up to 400 kg
  • Dual vacuum circuit for safety
  • Large wheels for rough terrain
  • Narrow footprint for internal access
  • Glass pivoting for navigating doorways
  • Precision adjustment for installation

Optional Extras:

  • Cups for curved glass or stone
  • Lifting winch
  • Purpose-built transport trailer
